Egis XD Flex 1 Relays - Tinned Wires
Reference:
8710-1100B
Egis XD Flex 1 Relays - Tinned Wires

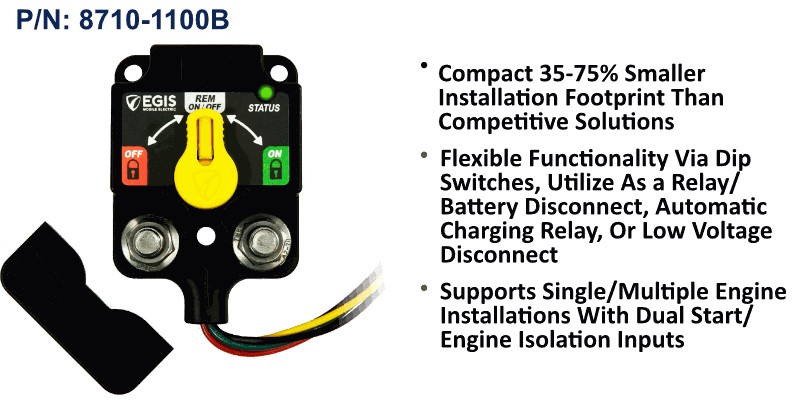

Egis XD Flex 1 relays are bi-stable sealed solenoids that cut mounting space and weight 35-75% versus conventional relays. DIP-switch programmable as relay, ACR or LVD, with optional manual override knob, tinned wire control leads and link-bus expansion.
Key Features & Upfitter Specs
- Options On This Page: Single Flex relay/ACR/LVD (with or without knob), programmable ACR, programmable LVD, remote battery switch, solenoid and 500 A heavy duty battery switch / mechanical contactor, plus dual and triple Flex relay/ACR/LVD.
- Ratings: 500 A continuous / 1600 A cranking per switch; IP67 / IP6K9K; ultra-low off-state current.
- Compatibility: DTM/ATM connector versions are pin-for-pin compatible with legacy ML series bi-stable relays - see the DTM Connector listing.
- Expandable: Link and crossover busbars connect single, dual and triple XD relays.
- Warranty: 4-year Egis warranty.
Specifications
| Configuration | Single - Flex Relay/ACR/LVD with Knob - Tinned Wires, Single - Flex Relay/ACR/LVD - Tinned Wires, Single - Programmable ACR with Knob - Tinned Wires, Single - Programmable ACR - Tinned Wires, Single - Remote Battery Switch with Knob - Tinned Wires, Single - Solenoid - Tinned Wires, Single - Programmable LVD with Knob - Tinned Wires, Single - Programmable LVD - Tinned Wires, Single - 500 A Heavy Duty Battery Switch/Mech Contactor, Dual - Flex Relay/ACR/LVD with Knob - Tinned Wires, Triple - Flex Relay/ACR/LVD with Knob - Tinned Wires |
| Manufacturer | Egis |
| Tags | |
|---|---|
| Tags |
|
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Part Numbers & Pricing 11 part numbers
Approved resellers see discounted pricing in this table after signing in.
Apply for a reseller account
Sign in
| Part Number | Manufacturer | Configuration | Price | Select |
|---|---|---|---|---|
8710-1100B
|
Egis | Single - Flex Relay/ACR/LVD with Knob - Tinned Wires | $ 1.00 | |
8710-1200B
|
Egis | Single - Flex Relay/ACR/LVD - Tinned Wires | $ 1.00 | |
8710-1300B
|
Egis | Single - Programmable ACR with Knob - Tinned Wires | $ 1.00 | |
8710-1400B
|
Egis | Single - Programmable ACR - Tinned Wires | $ 1.00 | |
8710-1500B
|
Egis | Single - Remote Battery Switch with Knob - Tinned Wires | $ 1.00 | |
8710-1600B
|
Egis | Single - Solenoid - Tinned Wires | $ 1.00 | |
8710-1700B
|
Egis | Single - Programmable LVD with Knob - Tinned Wires | $ 1.00 | |
8710-1800B
|
Egis | Single - Programmable LVD - Tinned Wires | $ 1.00 | |
8710-1900B
|
Egis | Single - 500 A Heavy Duty Battery Switch/Mech Contactor | $ 1.00 | |
8720-1110B
|
Egis | Dual - Flex Relay/ACR/LVD with Knob - Tinned Wires | $ 1.00 | |
8730-1111B
|
Egis | Triple - Flex Relay/ACR/LVD with Knob - Tinned Wires | $ 1.00 |
No part numbers match your filter.
Prices are per unit on your current pricelist, excluding tax and shipping. Select a row to add that part number to your cart.
