Egis 100 A Busbars
Reference:
6100-004B
Egis 100 A Busbars
Egis 100 A busbars distribute power or ground to multiple low-amp circuits from a compact tin-plated copper bar with stainless self-locking hardware. Covered versions and separate cover sets keep terminals protected.
Key Features & Upfitter Specs
- Options On This Page: 2x5 and 2x10 circuit dual busbars, dual stud 5-screw busbar, MiniBus 4-stud busbar (each with or without cover), the 6100-004B ring terminal battery mount kit and replacement covers.
- Ratings: 100 A continuous, 48 VDC; #10-24 studs, #8-32 screw terminals; CE marked.
- Construction: Tin-plated copper busbar, glass-filled nylon base, stainless steel hardware.
- Warranty: 4-year Egis warranty.
Specifications
| Configuration | Ring Terminal Busbar Kit, Battery Mount, Dual Busbar 2x5 Circuit 100 A, Dual Busbar 2x10 Circuit 100 A, Dual Stud BusBar - 5 Screw, MiniBus 4 Stud BusBar, Dual Stud BusBar - 5 Screw - With Cover, MiniBus4 Stud BusBar - With Cover, Cover Set for Dual Bus 20 Circuits, Cover for Dual Bus 10 Circuits, Cover - 100 A Busbar |
| Manufacturer | Egis |
| Tags | |
|---|---|
| Tags |
|
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Part Numbers & Pricing 10 part numbers
Approved resellers see discounted pricing in this table after signing in.
Apply for a reseller account
Sign in
| Part Number | Manufacturer | Configuration | Price | Select |
|---|---|---|---|---|

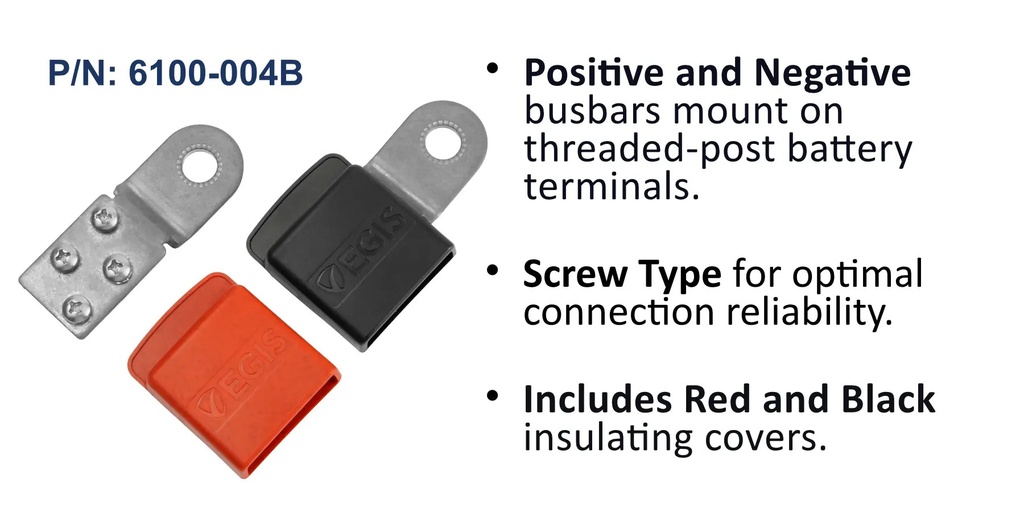

6100-004B
|
Egis | Ring Terminal Busbar Kit, Battery Mount | $ 1.00 | |
6100-005B
|
Egis | Dual Busbar 2x5 Circuit 100 A | $ 1.00 | |
6100-010B
|
Egis | Dual Busbar 2x10 Circuit 100 A | $ 1.00 | |
6100-205B
|
Egis | Dual Stud BusBar - 5 Screw | $ 1.00 | |
6100-400B
|
Egis | MiniBus 4 Stud BusBar | $ 1.00 | |
6101-205B
|
Egis | Dual Stud BusBar - 5 Screw - With Cover | $ 1.00 | |
6101-400B
|
Egis | MiniBus4 Stud BusBar - With Cover | $ 1.00 | |
6102B
|
Egis | Cover Set for Dual Bus 20 Circuits | $ 1.00 | |
6103B
|
Egis | Cover for Dual Bus 10 Circuits | $ 1.00 | |
6104B
|
Egis | Cover - 100 A Busbar | $ 1.00 |
No part numbers match your filter.
Prices are per unit on your current pricelist, excluding tax and shipping. Select a row to add that part number to your cart.
