Egis Panel Mount Fuse / Breaker Block
Reference:
2906B

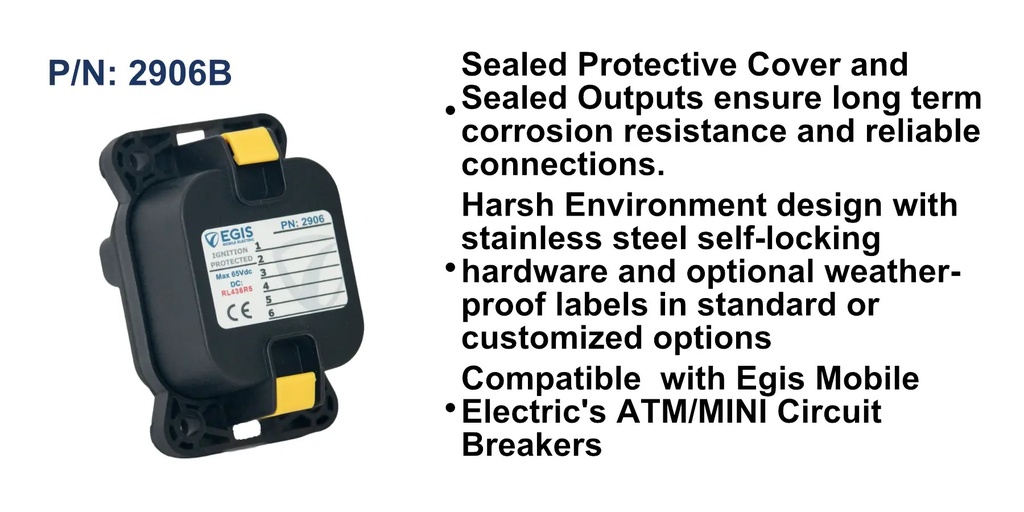

Egis Panel Mount Fuse / Breaker Block
A sealed 6-position block that mounts through a panel and accepts ATM mini fuses or Egis ATM circuit breakers. Latching sealed cover with label recesses, stainless self-locking hardware and ABYC-compliant circuit protection.
Key Features & Upfitter Specs
- Ratings: 30 A per circuit, 110 A total, 12/24 VDC nominal, 80 VDC max, IP67 / IP6K9K, M6 input terminal.
- Compatible: Egis 4720 series ATM / MINI circuit breakers and standard ATM fuses.
- Cover: Latching, sealing protective cover with integrated label recesses.
- Warranty: 4-year Egis warranty.
Specifications
| Manufacturer | Egis |
| Configuration | 6 Position |
